CA moduly Profisionálne CA moduly SMIT Viaccess-Orca PRO 8

SMIT Viaccess-Orca PRO 8

značka: Smit

Cena za kus: 264,00 €
Cena bez DPH: 220,00 €
celková cena :
Cena vrátane 20% DPH
264,00 €
Dostupnosť : Skladom , Množstvo:
ks

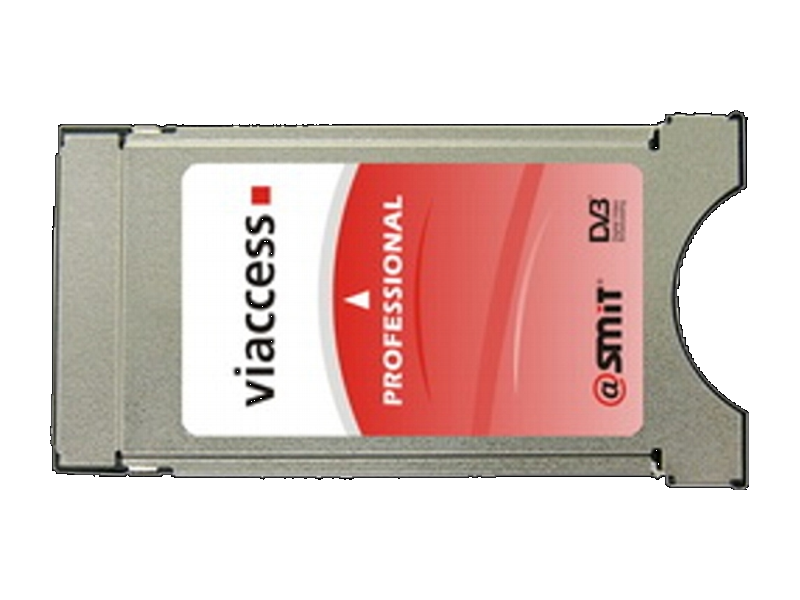

Licencovaný Modul SMIT VIACCESS PROFI 8

IDEÁLNY PRE DEKÓDOVANIE Systému VIaccess umožňuje SMIT Viaccess pro 8 otvoriť až do 8 služieb zároveň.

Použitie v Hlavných Staniciach (HEAD -ENDOCH)

THE CAM CAN BE USED ON IRDS, WHICH HAS DVB-CI INTERFACE. METICULOUSLY TESTED WITH IRDS MODELS FROM EUROPE, THE MIDDLE EAST, AUSTRALIA, ASIA. THE CAM SUPPORTS VIACCESS ACS 3.0 ENHANCED SECURE FEATURES (OPTIONAL). WITH AN AUTHORIZED VIACCESS SMART CARD, THE CAM GIVES ACCESS TO DVB ENCRYPTED PROGRAM. SMIT VIACCESS PRO 8 CAM IS ABLE TO DESCRAMBLE UP TO 8 SERVICES SIMULTANEOUSLY.

CHIPSET & TS BANDWIDTH:

  • BASED ON THE EMBEDDED 32-BIT CPU (ARM7TDMI)
  • ADOPTING ADVANCED 0.18-MICRON TECHNOLOGY
  • FLASH SIZE: 2M BYTES
  • RAM SIZE: 256K BYTES
  • TS PROCESS BANDWIDTH: UP TO 96MBPS (200MBPS IN THEORY)
  • LIMITED THERMAL AGING TEST IS OVER 24 HOURS

PHYSICAL & ELECTRICAL CHARACTERISTICS:

DIMENSIONS: TYPE II PCMCIA CARD (100MM X 58MM X 4MM)

  • CONNECTOR: 68-PIN PCMCIA SLOT
  • OPERATION VOLTAGE: 4.5V ~ 5.5V
  • OPERATION CURRENT: <150MA
  • LOW POWER CONSUMPTION: < 600MW

STANDARD:

  • PLUG AND PLAY
  • COMPATIBLE WITH DVB-CI STANDARD (EN50221)
  • COMPATIBLE WITH ETR289
  • COMPATIBLE WITH ISO7816 T=0 PROTOCOL, CLASS A AND CLASS B
  • COMPATIBLE WITH MPEG-2/MPEG-4
  • COMPATIBLE WITH THE ROHS DIRECTIVE 2002/95/EC AND ITS SUBSEQUENT AMENDMENTS

DESCRAMBLING & FILTERING:

  • SUPPORTING COMMON DESCRAMBLING ALGORITHM OF EUROPE
  • MULTI SERVICES DESCRAMBLING (OPTIONAL), UP TO 8 SERVICES DESCRAMBLING
  • UP TO 24 CONFIGURABLE PID FILTERS FOR FILTERING PACKET OR SECTION DATA

SOFTWARE UPGRADE:

  • SUPPORT OTA SOFTWARE UPGRADE
