značka: Neotion

Cena za kus: 199,20 €
Cena bez DPH: 166,00 €
celková cena :
Cena vrátane 20% DPH
199,20 €

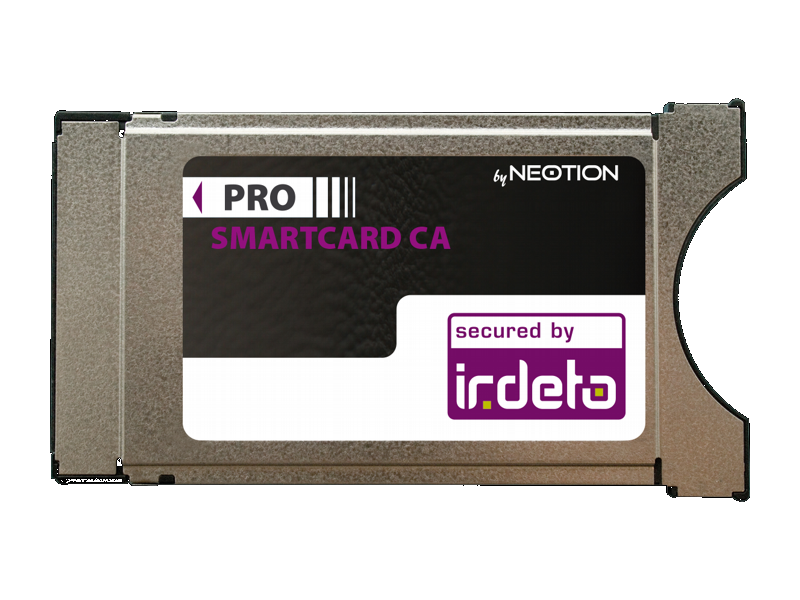

Neotion Irdeto profesionálny CA Modul, 8 kanálov

Podpora NEOTION in-house silicon technológie, Profesionálny Modul Neotion Irdeto určený pre použitie v profesionálnych hlavných staniciach je určený na dekódovanie TV programov kódovaných systémom Irdeto TM.


Technická špecifikácia :

Stream Type supported:

  • MPEG-2, MPEG-4, SD and HD
  • All Audio Type (MPEG2, AAC, HE AAC, Dolby, etc)
  • Private Data
  • Teletext
  • Interfacing:

  • Plug-and-Play & User Friendly
  • DVB-CI high level MMI compliant
  • Languages: English (more on demand)
  • Standards:

  • DVB Common Interface standard and PCMCIA ISO/IEC EN50221 compliant
  • CI Plus specification v1.2 compliant
  • Smart Card: full ISO 7816-3 (T=0, T=14) compliant
  • RoHS compliant directive 2002/95/EC
  • OTA:

  • Upgrade from MPEG transport stream over the air
  • DVB SSU compliant
  • Memory:

  • On chip eDRAM: 16Mbits
  • Off chip SDRAM: 128Mbits
  • Off chip Serial Flash: 64Mbits
  • Security:

  • IRDETOtm Conditional Access System embedded (for MPEG-2 or MPEG-4, SD & HD Pay TV services)
  • Unique and protected Authentication ID
  • Hardware crypto accelerators
  • Secure Chipset for application such as pairing (anti card sharing / anti control word sharing)
  • On chip OTP
  • Dual mode: Secure Chipset or No Secure Chipset mode according to the operator broadcast system settings.
  • Processing:

  • ARM7TM @ 126MHz
  • 8K I-cache and 8K D-cache
  • 8 DVB-CSA descrambler
  • Size, Weight & Power supply:

  • PCMCIA Type II
  • 46g
  • 5 volts, from any DVB-CI host
