EMP Multiswitch MS5/8 PIU-4
značka: EMP-Centauri
Hodnotenie : Zatial nebolo hodnotené - Ohodnoťte produkt teraz !
| Cena za kus: 60,47 € | |
|---|---|
| Cena bez DPH: 49,16 € | |
| celková cena : Cena vrátane 20% DPH |
60,47 € |
| Check Shipping price |
Strážiť dostupnosť
Dopytový Formulár

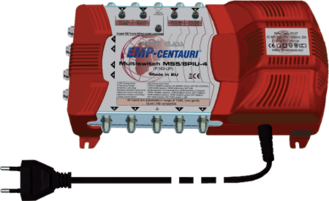

EMP Centauri Multiswitch MS 5/8PIU-4
5vstupov/8výstupov + terestiálny vstup
| Parameter | Condition | Value |
| Frequency range | LNB inputs | 950-2300 MHz |
| Terr. input | 5-862 MHz (passive) 40-862 MHz (active) |
|
| Outputs | 5-2300 MHz (passive) 40-2300 MHz (active) |
|
| Control | 13/18 V + 0/22 kHz | |
| Insertion loss | Sat. | 4 dB avg |
| Terr. active | 3 dB avg | |
| Terr. passive | 20 dB avg | |
| Sat. inputs isolation | 20 dB min | |
| Maximum input level* | Sat. | 90 dBµV avg** |
| Terr. | 100 dBµV avg (passive) 93 dBµV avg (active) |
|
| Maximum output level* | Sat. | 86 dBµV avg |
| Terr. | 80 dBµV avg (passive) 90 dBµV avg (active) |
|
| Power consumption | From each receiver | 40 mA (18 V) |
| From internal power supply | 4 W (passive) 6 W (active) + LNB |
|
| Terr. preamplifier supply | 100 mA max (12 V DC) | |
| Dimensions (w,d,h) | 27.0 x 15.2 x 8.7 cm (power cord length 130 cm) |
|
| Temperature range | -30 ~ +70 °C |
