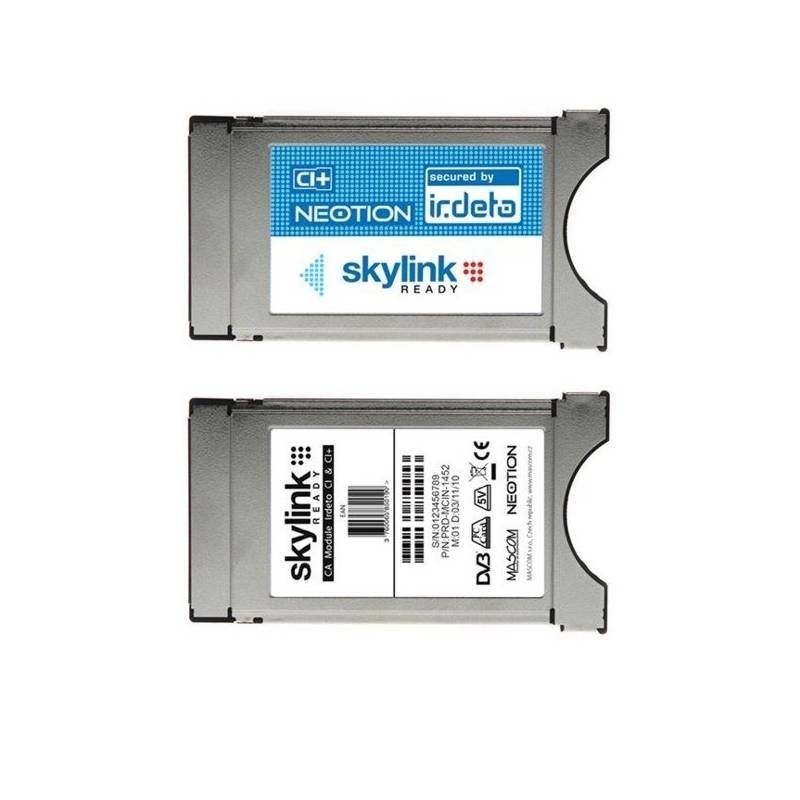

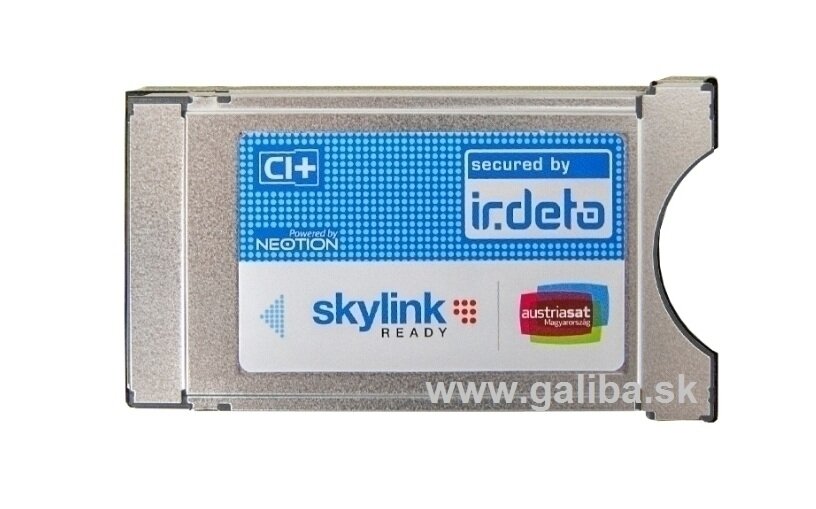

CA Modul IRDETO CI+ NEOTION NEW SKYLINK READY

značka: Neotion    EAN: 3760065850329

Cena za kus: 27,60 €
Cena bez DPH: 23,00 €
celková cena :
Cena vrátane 20% DPH
27,60 €

NEOTION Irdeto Modul, certifikovaný pre Skylink Operátora

Vhodný pre sledovanie TV Freesat od UPC a Skylink SK / CZ.

Vložený do CI Slotu (DVB-CI alebo CI Plus) , NEOTION CA Modul zabezpečí uživateľovi dekódovanie MPEG-4 / MPEG-2 a  HD TV kanálov, ktoré sú kódované systémom IRDETO TM.

Najnovšia verzia Softcell 3.11.

Technické parametre :

Stream Type supported:

  • MPEG-2, MPEG-4, SD and HD
  • All Audio Type (MPEG2, AAC, HE AAC, Dolby, etc)
  • Private Data
  • Teletext

Interfacing:

  • Plug-and-Play & User Friendly
  • DVB-CI high level MMI compliant / CI Plus browser
  • Languages: English (more on demand)

Standards:

  • DVB Common Interface standard and PCMCIA
  • ISO/IEC EN50221 compliant
  • CI Plus specification v1.2 compliant
  • Smart Card: full ISO 7816-3 (T=0, T=14) compliant
  • RoHS compliant directive 2002/95/EC

OTA:

  • Upgrade from MPEG transport stream over the air
  • DVB SSU compliant

Memory:

  • On chip eDRAM: 16Mbits
  • Off chip SDRAM: 128Mbits
  • Off chip Serial Flash: 32Mbits

Security:

  • IRDETOtm Conditional Access System embedded (for MPEG-2 or MPEG-4, SD & HD Pay TV services)
  • Unique and protected Authentication ID
  • Hardware crypto accelerators
  • Dual mode : Secure Chipset or No Secure Chipset mode according to the operator broadcast system settings. Secure Chipset for application such as pairing (anti card sharing / anti control word sharing)
  • On chip OTP
  • Copy Protection CI Plus Standard: both AES and DES encryption supported
  • Processing:
  • ARM7TM @ 126MHz
  • 8K I-cache and 8K D-cache
  • 8 DVB-CSA descrambler up to 64 PID
  • Section Filters Transport packet filters up to 32 PID

Size, Weight & Power supply:

  • PCMCIA Type II
  • 46g
  • 5 volts, from any DVB-CI / CI Plus host
