vu+ zero
Brand: VU Plus EAN ID: 8809288540640
Rating : Product not rated yet ! - Add review now !
| Price per unit: 90,00 € | |
|---|---|
| Price ex VAT: 75,00 € | |
| Total price: Price is including 20% VAT ! |
90,00 € |
| Check Shipping price |
Set up Watch Dog for this item
Send demand to sales department

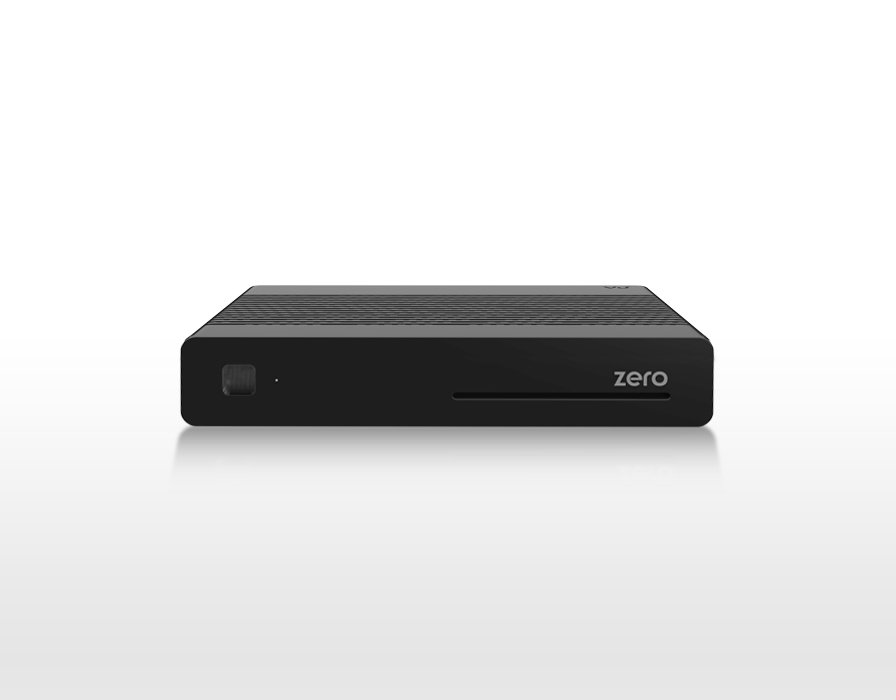

VU+ zero v2 its small size and elegant designed body.
The ZERO is characterized by a very elegant design that stands out from the monotony of the usual products on the market. The VU + ZERO is very attractive.
- Opera browser
- HbbTV
- HDMI 1.4 connection
- External IR receiver
- External 12 V power supply
Technical highlights:
- 742 MHz MIPS Processor
- 256MB Flash
- 512MB DDR3 DRAM
- 100 Mbit Lan
- 1 x smartcard reader (Xcrypt)
- 2 x USB
- 1 x HDMI 1.4 video / audio output (digital)
- 1 x video output jack
- 2 x audio output (L / R) jack
- unlimited channel lists for TV / Radio
- EPG (electronic program guide) Support
- Support of Bouquet lists
- OSD in many languages and skin-support
- Automatic / manual channel search
- DiSEqC 1.0 / 1.1 / 1.2, USALS
- External 12 Volt power supply
- power switch
DVB-S2:
- Input frequency range 950 ... 2150 MHz
- Input level range - 65 dBm ...- 25 dBm
- Tuner input F socket
- Input impedance 75 ohms
- AFC capture range +/- 3.5 MHz
- Demodulation QPSK and 8PSK
- FEC Viterbi and Reed-Solomon
- Viterbiraten 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9
- Roll-off Factor 35%
Video decoding:
- Video compression MPEG-2 / H.264 and MPEG-1 compatible
- Video Standard PAL G / 25 Hz, NTSC
- Aspect ratio 4: 3/16: 9
- Letterbox for 4: 3 TV sets
Audio Encoding:
- Audio compression MPEG-1 MPEG-2 Layer II and I, MP3
- Audio Mode Dual (main / sub), Stereo
- Sampling frequencies of 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
Analog output:
- Output Level L / R 0,5 Vss on 600 Ohm
- THD> 60 dB (1 kHz)
- Crosstalk <-65 dB
Video parameters:
- Input Level FBAS 1 Vss +/- 00:25 dB to 75 Ohms
Ethernet:
- 100/10 MBit compatible interface
USB:
- USB 2.0 (2x)
LNB power DVB-S2:
- LNB current 400mA max. , Short-circuit proof
- LNB voltage horizontal "no load 19.5V" 17,6V at 400mA
- LNB Voltage vertical "no load 14.5V" 11.8V at 400mA
- LNB is turned off in standby mode
Control of satellite positions:
- DiSEqC 1.0 / 1.1 / 1.2 and USALS - Rotor Control
Power consumption:
- <13W (in operation, with LNB)
- <12W (in operation, without LNB)
- <0.5W (Deep Standby Mode)
Input Voltage External Power Supply:
Entrance:
- 110-240V AC / 50-60Hz / 1,0A
Exit:
- 12V = / 3,5A
Further information about VU + ZERO
- Ambient temperature + 15 ° C ... + 35 ° C
- Humidity <80%
- Dimensions (W x D x H): 160x30x145mm
- Weight: 450g
