AMIKO ALIEN MINI

Brand: Amiko    EAN ID: 5999883020753

Rating : Product not rated yet !  - Add review now !

Price per unit: 72,00 €
Price ex VAT: 60,00 €
Total price:
Price is including 20% VAT !
72,00 €
Check Shipping price
Sold out or expected
   Set up Watch Dog for this item

Send demand to sales department

Your details will be saved based on Privacy Statement Conditions

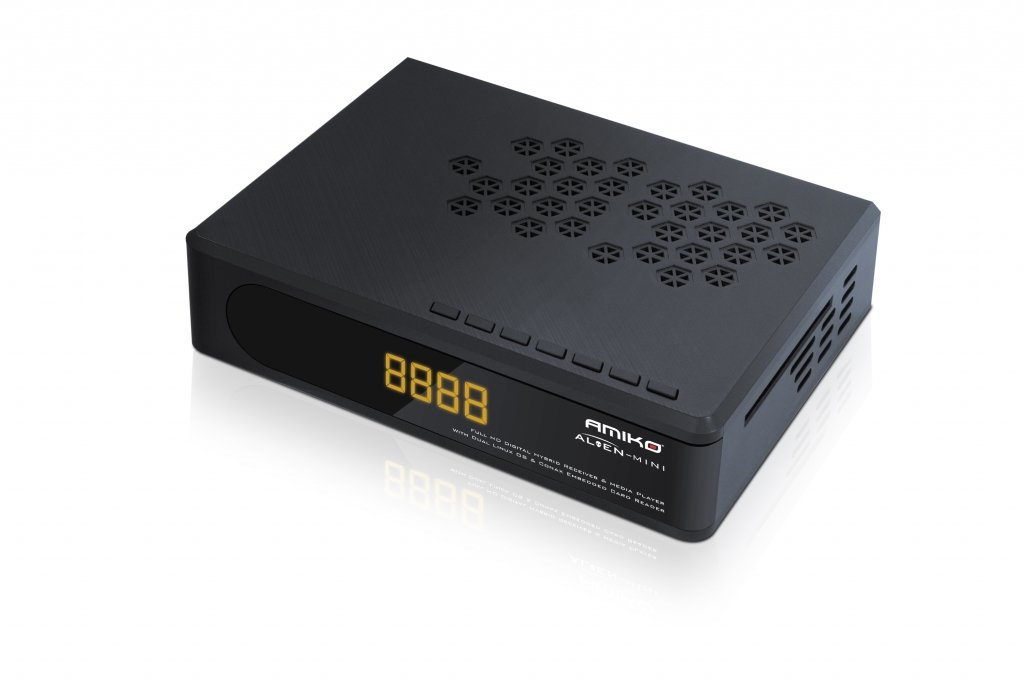

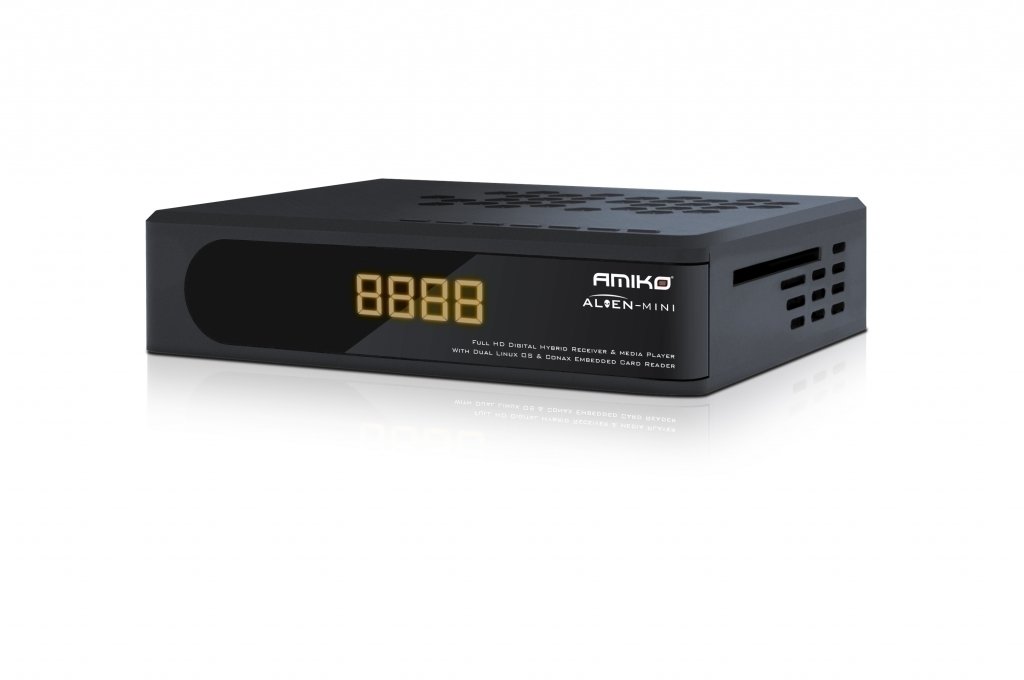

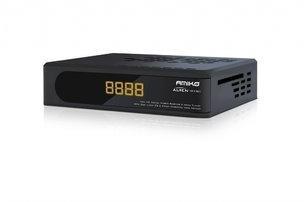

AMIKO ALIEN MINI, HIGH DEFINITION DIGITAL SATELLITE RECEIVER & MEDIA PLAYER

  • MPEG-Fully DVB-S / DVB-S2 HD compliant
  • Linux Embedded OS
  • Conax Embedded Card Reader
  • Endless possibilities with Plug-In support
  • Compact design
  • Mountable on TV's back, or on wall
  • External IR sensor (included in the package)
  • YouTube, SHOUTcast Radio, and Picasa Compatible
  • Weather forecast & Rss Reader Functions
  • S/PDIF for digital audio or Dolby Digital Bit-Stream output
  • DiSEqC 1.0, 1.1, 1.2 and USALS
  • Endless channels (TV and Radio) programmable
  • Multilingual menu text support
  • Channel list editing
  • Favourite channel list editing
  • True-color On-Screen Display (OSD)
  • Full Picture In Graphic (PIG) function
  • Electronic Program Guide (EPG) for on screen channel information
  • Subtitle supported
  • Teletext supported by software emulation
  • Parental lock facility by channel and program event
  • Program and Channel information transfer from receiver to receiver
  • HDMI HD Video/Audio Output
  • Two High Speed USB2.0 connections
  • RTC (Real-Time-Clock)
  • Time Shift
  • Recording one channel and Time Shifting another channel (optional)
  • FullHD 1080p output via HDMI
  • AVI, MKV, MPG, TS, M2TS, FLV, DAT, ASF, MP3 playback
  • Software Upgrade support via USB, RS232 or Internet
  • Message, FAQ and User Manual support
  • Download files from FTP server

SYSTEM RESOURCES Main Processor: 450M Hz based CPU
Flash Memory: Nor flash: 8MB X 1 ; Nand flash:512MB X 1
DDR SDRAM: DDR2 128MB x 2

Tuner/Front-end
Tuner Type: DVB-S / DVB-S2
Input Connector: F-type, Connector, Female
Loop Through: F-type, Connector, Female
Signal Level: -65 to -25 dBm
LNB Power & Polarization: Vertical: +13V/+14V, Horizontal: +18V/+19V, Current: Max. 500mA, Overload Protection
22KHz Tone: Frequency: 22±1KHz
DiSEqC Control: Amplitude: 0.6±0.2V, Version 1.0, 1.1 1.2, USALS Available
Demodulation: QPSK, 8PSK
Input Symbol Rate: 2-45 Mbps, Convolution Code Rate
1/2, 2/3, 3/4, 5/6,7/8,1/4,1/3,2/5,3/5,4/5,8/9,9/10 and Auto

POWER SUPPLY
Input Voltage: Free Voltage (100~240V AC, 50/60Hz)
Power Consumption: 20W MAX
MPEG TS A/V Decoding Transport Stream: MPEG-2, H.264
Input Rate: Max.120Mbit/s
Aspect Radio: 4:3, 16:9, Letter Box
Video Decoding: MPEG-2, MP@ML, MPEG-4 part 10/H264
Video Resolution: 720*480P/I, 720*576P/I, 1280*720p,1920*1080i, 1920*1080p
Audio Decoding: MEPG-1 layer I/II, Mpeg2 layerII, Dolby digital
Audio Mode: Left / Right / Stereo/ Mono
Sampling Rate: 32, 44.1 and 48KHz

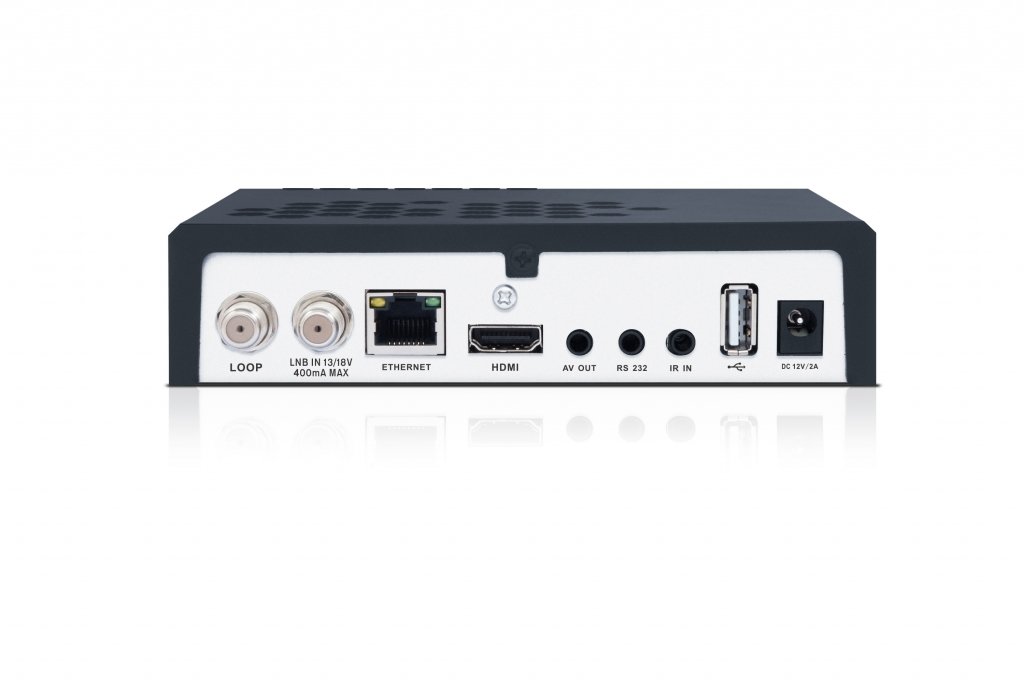

A/V & DATA INPUT/OUTPUT
RCA A/V: Video CVBS output, Audio L/R output (Jack Type)
RS-232C: Transfer rate 115.2Kbps, Jack to 9 pin D-sub Type
RJ-45: 10M/100M
External IR: Jack type
USB: Two USB 2.0 slots
HDMI: VER1.3, Type A

Physical Specifications

Size[W*H*D]: 144mm*40mm*110mm
Net Weight: 0.5KG
Operation Temperature: 0°C~+45°C
Storage Temperature: -10°C~+70°C
Storage Humidity: 5%~95% RH (Non-Condensing)
