AMIKO HD8140 T2/C
AMIKO HD8140 T2/C
Brand: Amiko
Rating : Product not rated yet ! - Add review now !
| Price per unit: 45,60 € | |
|---|---|
| Price ex VAT: 38,00 € | |
| Total price: Price is including 20% VAT ! |
45,60 € |
| Check Shipping price |
Set up Watch Dog for this item
Send demand to sales department

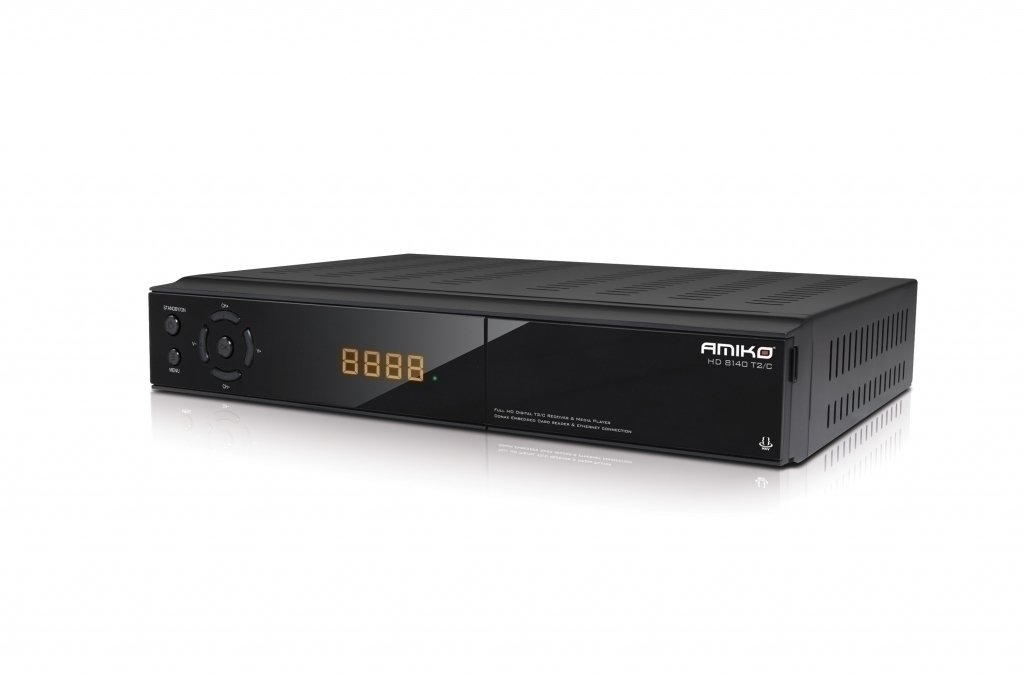

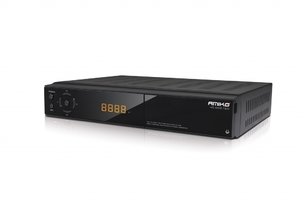

AMIKO HD8140 T2/C, FULL HD DIGITAL T2 TERRESTRIAL / CABLE RECEIVER WITH CONAX EMBEDDED CARD READER
- Conax Embedded Card Reader
- 5000 channels (TV and Radio) programmable
- One High Speed USB 2.0 Connections
- Ethernet & USB WiFi Support (Ralink RT5370 chip only)
- YouTube videos
- RSS Reader & Weather Forecast Functions (Ethernet or WiFi connection required)
- S/PDIF for digital audio or Dolby Digital Bit-Stream output
- Full HD (1080p) Output via HDMI
- Channel Recording to External Storage Devices
- Timeshift support
- True-color, User Friendly On-Screen Display (OSD)
- Full Picture In Graphic (PIG) function
- Electronic Program Guide (EPG) for on screen channel information
- Subtitle supported
- Teletext supported by VBI insertion and software emulation
- Parental lock facility by channel and program event
- Program and Channel information transfer from receiver to receiver
- Exciting games embedded
- Multi-Language support
- 4 Digit LED Display
- RTC (Real-Time-Clock)
- Power Consumption in Stand-By: <0.5W
| Tuner & Demodulation
Tuner Type: DVB-T2 / DVB-C Frequency Range: 48~862MHz RF Input Level: -80dBm to -20dBm Antenna power output: DC 5V at max 75mA, Overload protection Demodulation: COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended Input Symbol Rate: 1.0 ~ 7.0Ms/s Constellations: QPSK, 16QAM, 64QAM, 256QAM / Both rotated and non-rotated Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128 Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6 System Resources Main Processor: 400MHz based CPU Flash Memory: 64MBits DDR RAM: 1024Mbits |
Power Supply

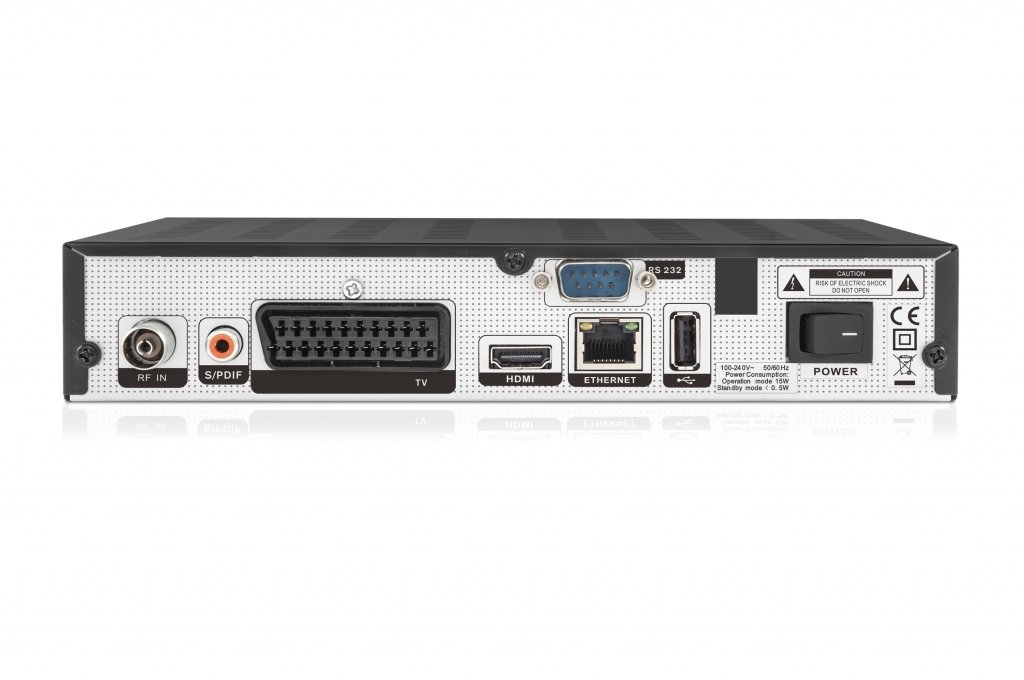

Input Voltage: Free Voltage (100-250V AC 50/60Hz) Power Consumption: 30W Max Stand-By Power Consumption: <0.5W A/V & Data Input/Output TV-SCART: Video CVBS/RGB output, Audio L/R output S/PDIF: Coaxial, Digital Audio or Dolby Digital Bit Stream Output RS-232C: Transfer rate 115.2Kbps, 9 pin D-sub Type USB: One USB 2.0 slots HDMI: VER1.3, Type A Ethernet: 10M RJ45 (optional) Physical Specifications Size[W*H*D]: 220mm*40mm*160mm Net Weight: 1.0KG Operation Temperature: 0°C~+45°C Storage Temperature: -10°C~+70°C Storage Humidity: 5%~95% RH (Non-Condensing) |
