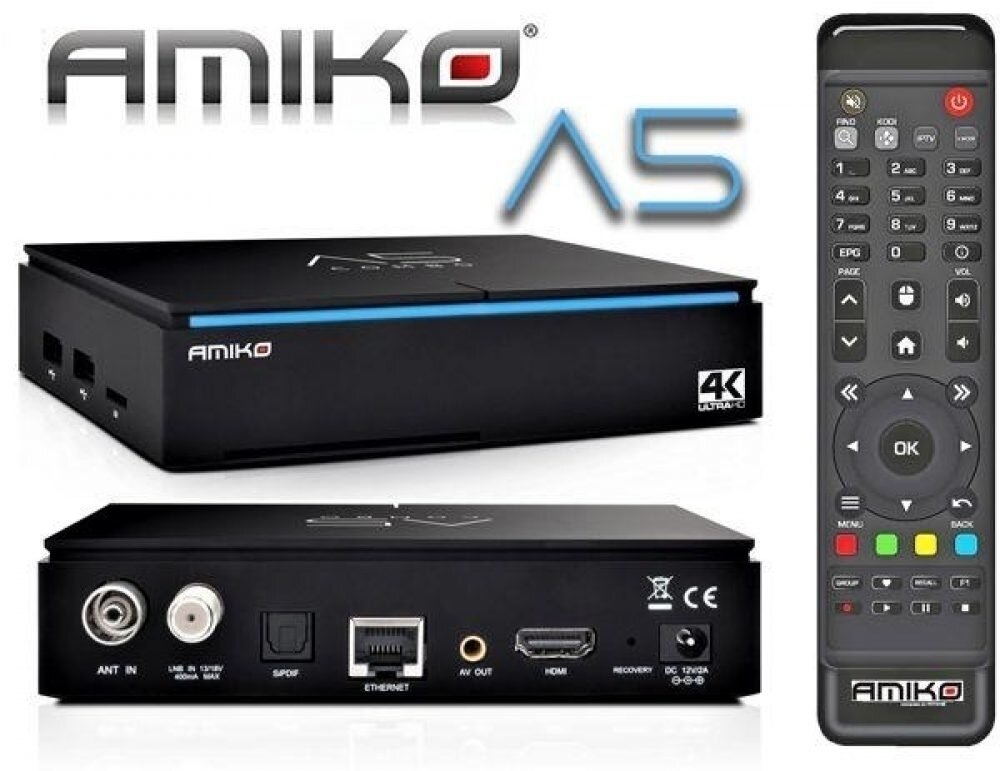

Amiko A5 combo HEVC
Brand: Amiko
Rating : 5 - Add review now !
| Price per unit: 104,40 € | |
|---|---|
| Price ex VAT: 87,00 € | |
| Total price: Price is including 20% VAT ! |
104,40 € |
| Check Shipping price |
Set up Watch Dog for this item
Send demand to sales department
- One S2 satellite & one T2 terrestrial / cable hybrid tuner
- card reader
- Fast & easy installation
- 64bit Quad Core 2.0GHZ Processor
- 16GB integrated flash memory (eMMC)
- 2 x USB 2.0 connections
- Micro SD card expansion slot
- Google Play™
- YouTube videos
- Based on Android™ 7.1
- Hundreds of thousands of available applications!
- KODI media player support
- Easy streaming to iOS, Android™ devices & PC's
- DLNA - Easy playback over local network
- 4K 2160p output via HDMI2.0
- Ethernet connection & built in Wireless-N WiFi
- Wired and wireless keyboard & mouse support
- High quality digital surround sound via S/PDIF & HDMI
- Low power consumption in Stand-By mode
Technical Specifications :
- Main CPU : 64bit Quad Core, 2.0GHZ Processor
- Main GPU : Octo-Core Mali 450MP GPU, (600MHz)
- DDR : 2GB DDR3
- eMMC : 16GB
* Tuner & demodulation :
- Tuner type : DVB-S / DVB-S2
- Input connector : F-Type (Female)
- Signal level : -65 to -25 dBm
- LNB Power : Vertical: +13V/14V,
- Horizontal : +18V/19V
- LNB Current : 400mA max (overload protection)
- 22kHz Tone : Frequency: 22 kHz ±4kHz
- DiSEqC control : Version 1.0, 1.1, 1.2, USALS (Amplitude : 0.6 ±0.2V)
- Demodulation : QPSK, 8PSK
- Input symbol rate : 2-45Mbps, Convolution Code Rate
- FEC : 1/2, 2/3, 3/4, 5/6, 7/8, 1/4, 1/3, 2/5, 3/5, 4/5, 8/9, 9/10, auto
- Tuner type : DVB-T2 / DVB-T/ DVB-C
- Frequency range : 48~862MHz
- RF input level : -80dBm to -20dBm
- Antenna power output : DC 5V at max 75mA (overload protection)
- Demodulation : COFDM 1K, 2K, 4K, 8K, 16K, 32K normal and extended
- Input symbol rate : 1.0 ~ 7.0Ms/s
- Constellations : QPSK, 16QAM, 64QAM, 256QAM / Both rotated and non-rotated
- Guard intervals : 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
- Code rate: 1/2, 3/5, 2/3, 3/4, 5/6
* Audio / Video Decoding :
- Input rate : Max. 120Mbit/s
- Aspect ratio : 4:3, 16:9
- Video decoding : H.265/HEVC, MPEG-2, MP@ML, MPEG-4 Part 10 / H.264
- Video resolution : 720*480p/i, 720*576p/i, 1280*720p, 1920*1080i/p, 2160p
- Audio decoding : MPEG-1 layer I/II, Mpeg2 layer II, Dolby Digital
- Audio mode : Left / Right / Stereo / Mono
- Sampling rate : 32, 44.1 & 48KHz
* Interfaces :
- HDMI : Type-A, Version 2.0
- AV : Jack Type (CVBS video & Audio L/R output)
- USB : 2x High speed USB 2.0 ports
- SD card : 1 MicroSD card slot (up to 32GB)
- Ethernet : 100/1000M RJ45
- Wi-Fi : 2.4G single band wi-fi
- S/PDIF : Optical for digital audio output
* Power supply :
- Type : External power supply
- Input voltage : 110V - 240V AC
- Output voltage : DC 12V (2A)
- Stand-By power consumption : <0.5W
* Physical Specifications :
- Size (WxDxH) : 140mm x 100mm x 31mm
- Operation temperature : 0ºC - 40ºC
- Storage temperature: -10ºC - 70ºC
- Storage humidity : 5-95% RH (non condensing)
PRODUCTION FINISHED in 2019
