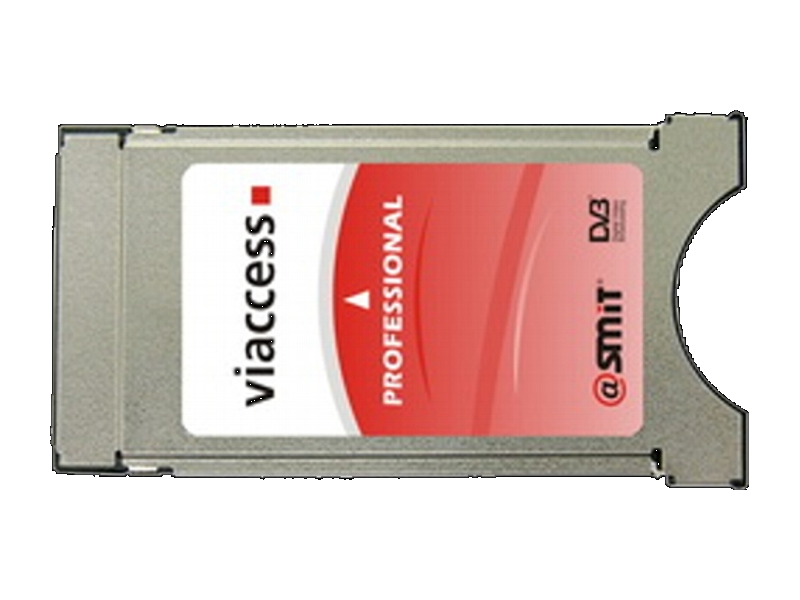

SMIT Viaccess-Orca PRO 8
Brand: Smit
Rating : Product not rated yet ! - Add review now !
| Price per unit: 270,60 € | |
|---|---|
| Price ex VAT: 220,00 € | |
| Total price: Price is including 20% VAT ! |
270,60 € |
| Check Shipping price |
IN STOCK , Your Quantity:
THE CAM CAN BE USED ON IRDS, WHICH HAS DVB-CI INTERFACE. METICULOUSLY TESTED WITH IRDS MODELS FROM EUROPE, THE MIDDLE EAST, AUSTRALIA, ASIA. THE CAM SUPPORTS VIACCESS ACS 3.0 ENHANCED SECURE FEATURES (OPTIONAL). WITH AN AUTHORIZED VIACCESS SMART CARD, THE CAM GIVES ACCESS TO DVB ENCRYPTED PROGRAM. SMIT VIACCESS PRO 8 CAM IS ABLE TO DESCRAMBLE UP TO 8 SERVICES SIMULTANEOUSLY.
CHIPSET & TS BANDWIDTH:
- BASED ON THE EMBEDDED 32-BIT CPU (ARM7TDMI)
- ADOPTING ADVANCED 0.18-MICRON TECHNOLOGY
- FLASH SIZE: 2M BYTES
- RAM SIZE: 256K BYTES
- TS PROCESS BANDWIDTH: UP TO 96MBPS (200MBPS IN THEORY)
- LIMITED THERMAL AGING TEST IS OVER 24 HOURS
PHYSICAL & ELECTRICAL CHARACTERISTICS:
DIMENSIONS: TYPE II PCMCIA CARD (100MM X 58MM X 4MM)
- CONNECTOR: 68-PIN PCMCIA SLOT
- OPERATION VOLTAGE: 4.5V ~ 5.5V
- OPERATION CURRENT: <150MA
- LOW POWER CONSUMPTION: < 600MW
STANDARD:
- PLUG AND PLAY
- COMPATIBLE WITH DVB-CI STANDARD (EN50221)
- COMPATIBLE WITH ETR289
- COMPATIBLE WITH ISO7816 T=0 PROTOCOL, CLASS A AND CLASS B
- COMPATIBLE WITH MPEG-2/MPEG-4
- COMPATIBLE WITH THE ROHS DIRECTIVE 2002/95/EC AND ITS SUBSEQUENT AMENDMENTS
DESCRAMBLING & FILTERING:
- SUPPORTING COMMON DESCRAMBLING ALGORITHM OF EUROPE
- MULTI SERVICES DESCRAMBLING (OPTIONAL), UP TO 8 SERVICES DESCRAMBLING
- UP TO 24 CONFIGURABLE PID FILTERS FOR FILTERING PACKET OR SECTION DATA
SOFTWARE UPGRADE:
- SUPPORT OTA SOFTWARE UPGRADE
