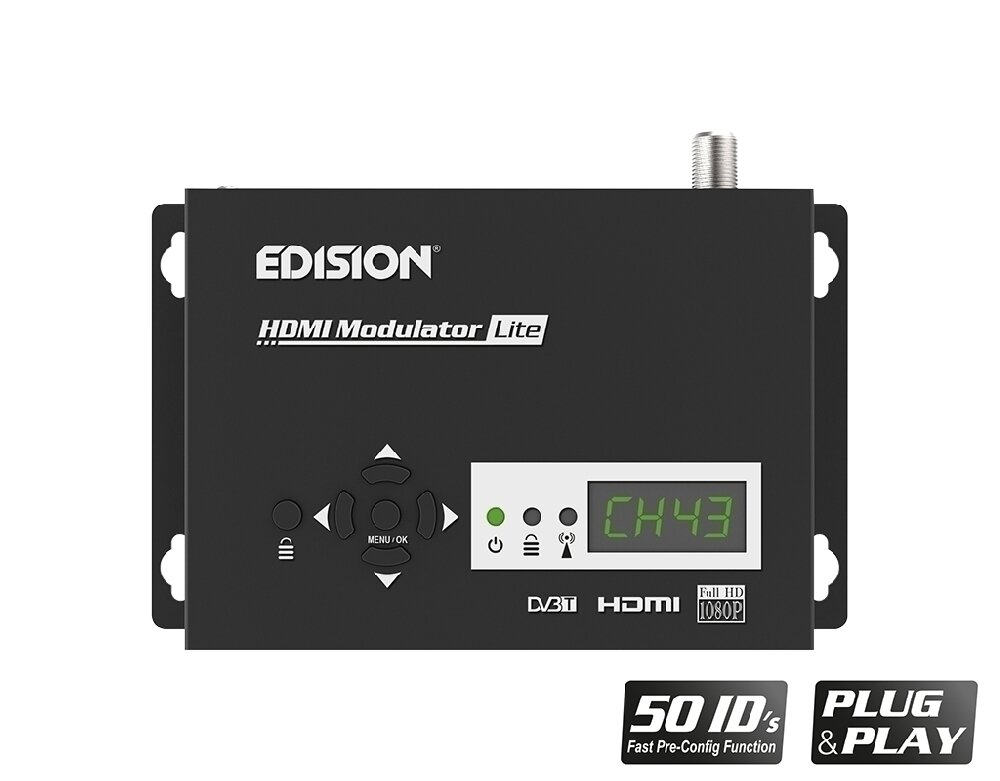

EDISION HDMI - DVB-T Modulator LITE
Brand: Edision EAN ID: 5200378402412
Rating : Product not rated yet ! - Add review now !
| Price per unit: 114,00 € | |
|---|---|
| Price ex VAT: 95,00 € | |
| Total price: Price is including 20% VAT ! |
114,00 € |
| Check Shipping price |
Set up Watch Dog for this item
Send demand to sales department
Full HD Modulator Edision Lite single-channel HDMI to DVB-T MPEG4 with pre-configured and easily selectable programming. HDMI signal input from any HDMI source (Terrestrial & Satellite TV receivers, cameras, DVD's, DVR's, etc) is converted up to FULL HIGH DEFINITION 1080p, Digital Terrestrial DVB-T MPEG4 signal output, in VHF/UHF band. Produces excellent quality digital COFDM signal output, combined with reliable functionality and stable operation, under all configurations. With USB port for fast CONFIG DATA function. Plus, its FAST PRE-CONFIG function offers 50 pre-configured and easily selectable ID's for quick and easy programming, when more than 1 units in the same installation.
Technical features:
- Digital HDMI Modulator single-channel DVB-T VHF/UHF, with FAST PRE-CONFIG function (50 IDs Selectable) plus CONFIG DATA function (USB extract, easy upload to Modulator)
- INPUT signal: HDMI
- OUTPUT signal: Up to FULL HIGH DEFINITION (1080i, up to 1080p@30FPS), Digital Terrestrial DVB-T signal, MPEG4
- Aspect Ratio 16:9 wide screen, 4:3 letter box, 4:3 pan scan
- Frequency Range VHF (CH. 5-12) & UHF (CH. 21-69)
- RF Output Level: Factory default 90 dbμV, with adjustable gain up to +6dbμV or attenuation up to -14dbμV
- MER: >35dB at Maximum RF output level
- Symbol Rate Up to 31.668 MBPS
- Bandwidth 7MHZ, 8MHZ
- Video Encoder MPEG1, MPEG2 MP@HL , MPEG4 SP@L3 to ASP@L5, MPEG4 AVC HP @level4.1, MP@level4.1
- Audio encoder MPEGI L1/2, MPEGII LII, AAC LC, HE-AAC v1/v2 (2-CH)
- Processor System: CPU 200MHz 32Bits RISC
- Memory DDRII 16bit 512Mbits (Embedded) & NOR Flash 32Mbit
- Input HDMI v1.4a
- USB Type USB 2.0 HOST, Fat32 support
- 4-digit LED display
- Power supply unit type: Adapter Input:100~240V AC,Output:DC 5V/2.0A
- Power consumption in normal working mode: 10W maximum
- Dimensions: 147x105x28 mm
- Colour: Black
- Warranty: Two [2] years
