Infomir MAG 424 / 425 IPTV
Infomir MAG 424 / 425 IPTV
Brand: Infomir
Rating : Product not rated yet ! - Add review now !
| Price per unit: 88,56 € | |
|---|---|
| Price ex VAT: 72,00 € | |
| Total price: Price is including 20% VAT ! |
88,56 € |
| Check Shipping price |
Set up Watch Dog for this item
Send demand to sales department

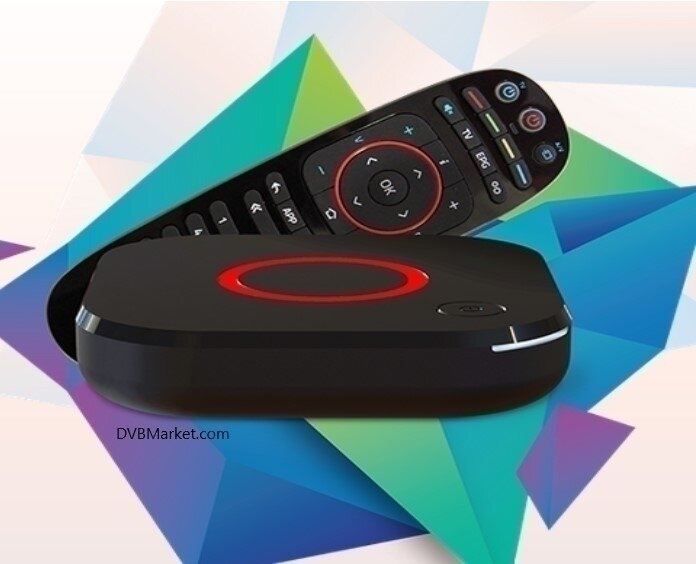

Made by Ukrainian Infomir factory is Infomir MAG 424 IPTV Linux STB with unique open platform for your needs. Available also in W3 (450Mbit WIfi on board) version. HEVC Compatibility.
The cost-effective solution for your IPTV/OTT project with a full set of functions. MAG424/425 is a basic set-top box on a Broadcom chipset that supports HEVC compression. The device, therefore, runs quickly and with minimal network load. Through its HDMI 1.4b output, you can enjoy high-quality video.
Infomir have also completely changed the case and remote control design, making it more ergonomic and easier to use.
Hardware
| Chipset | Hi3798MV200 |
| Processor | ARM Cortex-A53 Quad Core CPU 1200 MHz |
| Performance | 15 000 DMIPS |
| RAM | 1 GB |
| Flash memory | 8 GB eMMC |
Software
| Operating system | Linux 4.4.35 |
| Middleware supported | Ministra TV platform version 5.4.0 or higher |
Interfaces

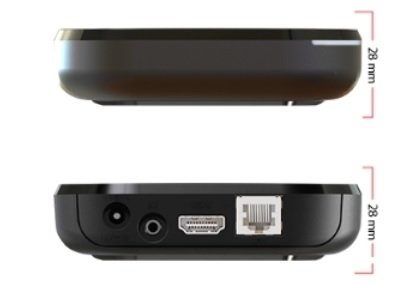

| HDMI 2.0, Ethernet 100 Mbps, USB 2.0х1, USB 3.0x1, MicroSD |
Sources of media content
| PC and NAS in local network, Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP), USB-devices |
Audio & video
| Audio сodecs | MPEG L1/L2/L3, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus |
| Audio formats | MP3, MPA, M4A, OGG, WAV, AAC |
| Video modes | PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p |
| Video сodecs | H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support |
| Video containers | TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP |
| Image formats | JPEG, PNG, BMP, RAW |
| Subtitles | DVB, PGS, SRT, SSA/ASS, SUB, Teletext subs, WebVtt, Closed caption |
| Playlist formats | M3U, M3U8, PLS, CUE |
Standard set
| MAG424 Set-Top Box, User Manual, HDMI cable, Power adapter 12V 1A, Remote control, 2 AAA batteries, Packaging |
