Infomir MAG 254 W1 (Wifi) IPTV BOX
Infomir MAG 254 W1 (Wifi) IPTV BOX
Brand: Infomir
Rating : Product not rated yet ! - Add review now !
| Price per unit: 77,49 € | |
|---|---|
| Price ex VAT: 63,00 € | |
| Total price: Price is including 20% VAT ! |
77,49 € |
| Check Shipping price |
Set up Watch Dog for this item
Send demand to sales department

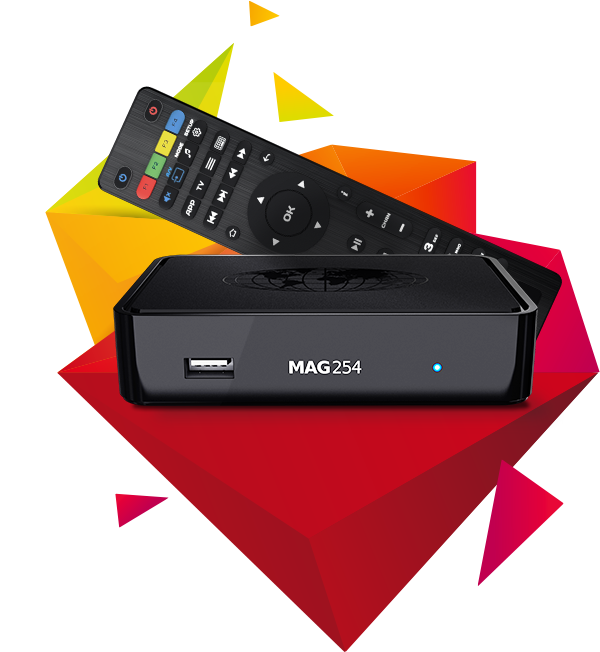

MAG 254/255 is a powerful set top box with STiH207 efficient processor and RAM memory increase, and it is an optimal solution for IPTV / OTT projects. The Set-Top Box is designed to Fulfill Business Projects of Internet Providers, OTT operators and content aggregators. The increased productivity of MAG 254/255 Enables to use resource-intensive applications and interactive 3D video support. Wifi on board.
PRODUCTION OF MAG 254W1 FINISHED, COMPATIBLE REPLACEMENT MAG 322W1 Wifi available in stock.
PRODUCTION OF MAG 254W1 FINISHED, COMPATIBLE REPLACEMENT MAG 322W1 Wifi available in stock.
Specifications
Dimensions
| Width/depth/height, (mm): | 127/87/30 |
| Weight, g: | 190 |
Hardware
| Processor: | STiH207 |
| Flash memory: | 256 Mb |
Software
| Operating system: | Linux 2.6.23 |
| Built-in Media Portal with WebKit-based IPTV-functionality HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C layer SDK | |
| DRM option: | Secure Media, Verimatrix (MAG255) |
| Middleware supported: | Stalker, Netup, SmartLabs, Netris, Beenius |
Interfaces
| Audio output S/PDIF HDMI 1.4-output Composite + stereo A/V output Ethernet 100 Mb/s USB 2.0 (WiFi-adapter can be connected) |
Sources of media content
| PC and NAS in local network, Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP), USB-devices |
Audio&Video
| Audio сodecs: | MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 layer III (mp3), Dolby Digital (optional), DTS (optional) |
| Audio formats: | MP3, MPA, M4A, WMA (optional), Ogg, WAV |
| Video modes: | 1080i, 1080p, 720p, 576p, 480р, PAL, NTSC |
| Video сodecs: | MPEG1/2 MP@HL, H.264 HP@level 4.1, MPEG4 part 2 (ASP), WMV-9 (optional), VC1 video, XviD; HD video supporting (up to 40 Mbit/s and above) |
| Video containers: | MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT, WMV |
| Image formats: | JPEG, PNG, BMP, GIF, RAW |
| Subtitles: | DVB, SRT, text MKV |
| Playlist formats: | M3U |
Standard set
| MAG254/255 Set-Top Box, user manual, Mini jack cable to RCA (A/V), Power adapter 12V 1A, remote control, 2 AAA batteries, packaging |
- RECEIVER
- HDMI CABLE
- REMOTE CONTROLL
- POWER SUPPLY - (UK /EU/ NA)
- SHORT MANUAL (EN)
PRODUCTION OF MAG 254 FINISHED, Replacement is MAG 322 / 322w1 !
