EMP Multiswitch MS5/28 PIU-6
EMP Multiswitch MS5/28 PIU-6
Brand: EMP-Centauri
Rating : Product not rated yet ! - Add review now !
| Price per unit: 135,00 € | |
|---|---|
| Price ex VAT: 112,50 € | |
| Total price: Price is including 20% VAT ! |
135,00 € |
| Check Shipping price |
Set up Watch Dog for this item
Send demand to sales department

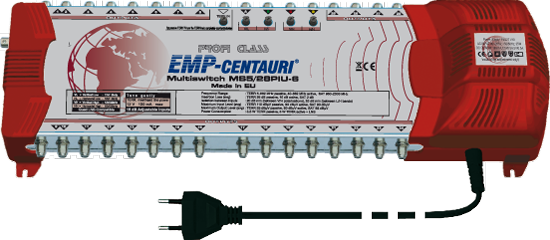

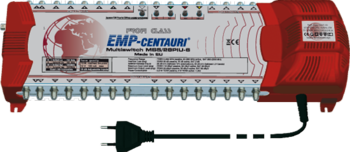

EMP Centauri Multiswitch MS 5/28PIU-6

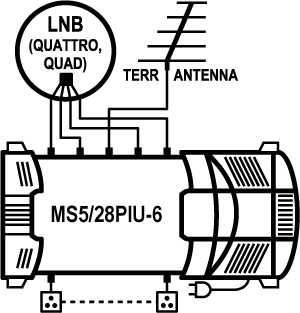

5in/28out standalone multiswitch for distribution of 4 SAT IF signals including terrestrial for up to 28 users
| Parameter | Condition | Value |
| Frequency range | LNB inputs | 950-2300 MHz |
| Terr. input | 5-862 MHz (passive) 40-862 MHz (active) |
|
| Outputs | 5-2300 MHz (passive) 40-2300 MHz (active) |
|
| Control | 13/18 V + 0/22 kHz | |
| Insertion gain / loss | Sat. | 4 dB avg. |
| Terr active | 10 dB avg | |
| Terr. passive | 25 dB avg | |
| Sat. inputs isolation | 20 dB min | |
| Maximum input level* | Sat. | 90 dBµV avg** |
| Terr. | 100 dBµV avg (passive) 90 dBµV avg (active) |
|
| Maximum output level* | Sat. | 86 dBµV avg |
| Terr. | 75 dBµV avg (passive) 80 dBµV avg (active) |
|
| Power consumption | From each receiver | 40 mA (18 V) |
| From internal power supply | 3.5 W (passive) 5 W (active) + LNB |
|
| Terr. preamplifier supply | 100 mA max (12 V DC) | |
| Dimensions (w,d,h) | 47.0 x 15.2 x 8.7 cm (power cord length 130 cm) |
|
| Temperature range | -30 ~ +70 °C |
