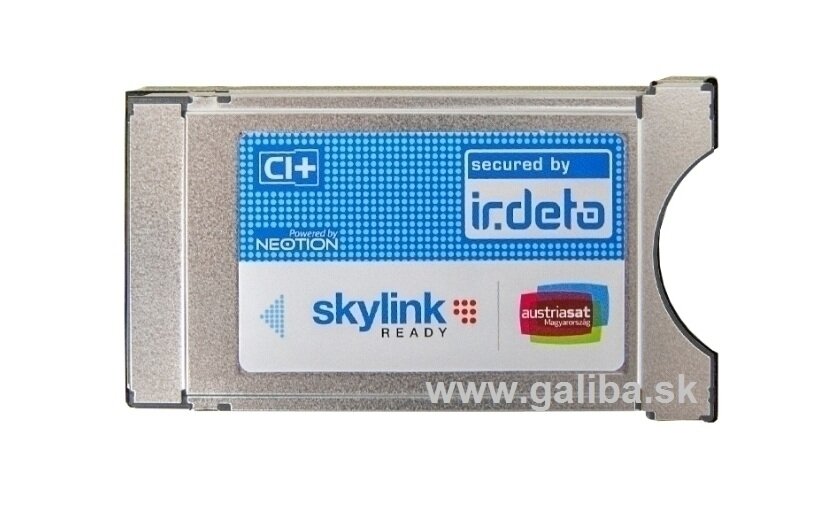

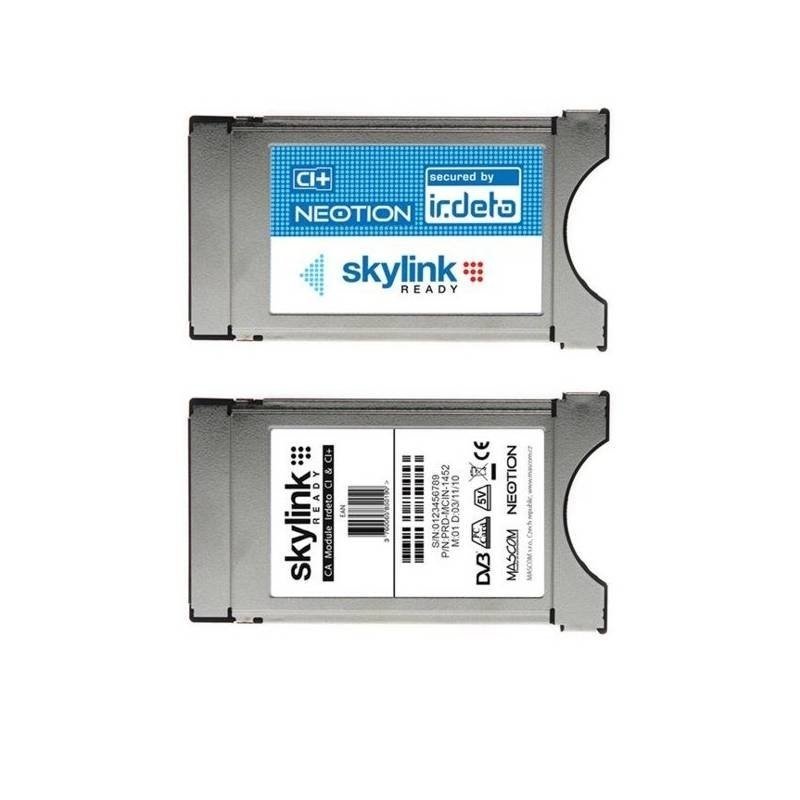

CA Modul IRDETO CI+ NEOTION NEW SKYLINK READY
Brand: Neotion EAN ID: 3760065850329
Rating : Product not rated yet ! - Add review now !
| Price per unit: 27,60 € | |
|---|---|
| Price ex VAT: 23,00 € | |
| Total price: Price is including 20% VAT ! |
27,60 € |
| Check Shipping price |
Set up Watch Dog for this item
Send demand to sales department
Inserted in the Common Interface (DVB-CI or CI Plus) slot, NEOTION CAM allows customers to simply benefit from the booming emergence of MPEG-4 / MPEG-2 and HDTV channels scrambled with IRDETOTM on their digital receivers.
IRDETO CAM Main Features
Stream Type supported:
- MPEG-2, MPEG-4, SD and HD
- All Audio Type (MPEG2, AAC, HE AAC, Dolby, etc)
- Private Data
- Teletext
Interfacing:
- Plug-and-Play & User Friendly
- DVB-CI high level MMI compliant / CI Plus browser
- Languages: English (more on demand)
Standards:
- DVB Common Interface standard and PCMCIA
- ISO/IEC EN50221 compliant
- CI Plus specification v1.2 compliant
- Smart Card: full ISO 7816-3 (T=0, T=14) compliant
- RoHS compliant directive 2002/95/EC
OTA:
- Upgrade from MPEG transport stream over the air
- DVB SSU compliant
Memory:
- On chip eDRAM: 16Mbits
- Off chip SDRAM: 128Mbits
- Off chip Serial Flash: 32Mbits
Security:
- IRDETOtm Conditional Access System embedded (for MPEG-2 or MPEG-4, SD & HD Pay TV services)
- Unique and protected Authentication ID
- Hardware crypto accelerators
- Dual mode : Secure Chipset or No Secure Chipset mode according to the operator broadcast system settings. Secure Chipset for application such as pairing (anti card sharing / anti control word sharing)
- On chip OTP
- Copy Protection CI Plus Standard: both AES and DES encryption supported
- Processing:
- ARM7TM @ 126MHz
- 8K I-cache and 8K D-cache
- 8 DVB-CSA descrambler up to 64 PID
- Section Filters Transport packet filters up to 32 PID
Size, Weight & Power supply:
- PCMCIA Type II
- 46g
- 5 volts, from any DVB-CI / CI Plus host
