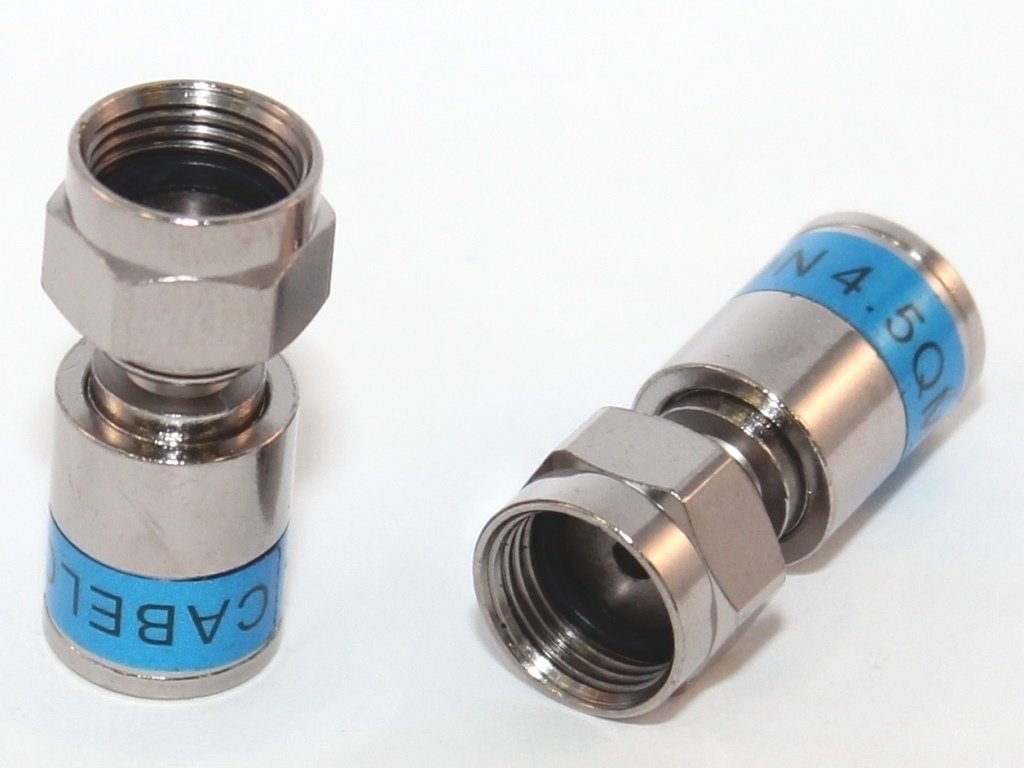

Connectors cabelcon F-CX3 4.5 QM SHORT

cabelcon F-CX3 4.5 QM SHORT

Price per unit: 0,61 €
Price ex VAT: 0,51 €
Total price: Price is including 20% VAT !	0,61 €
Check Shipping price

IN STOCK , Your Quantity:

Fits cable within the following diameters:
Outer conductor (Outer Conductor): 3.0 to 3.7 mm
Coat (Jacket): 4.3 to 4.9 mm

Attention! It can only freely adjustable or compression pliers with Cabelcon CX3 Short Adapter (compression slope 5 mm shorter than standard CX3) are used. (For example, 3H-CTU06 - Universal Compression Tool CX3 Multimedia Tool CX3 All Size Tool)
Easy installation without Kraftaufwand- it is placed under the braid tube no more.
Location: indoor and outdoor use. The connector is 100% waterproof.
Caution when used in conjunction with a cable with inner conductor diameter of less than 0.6 to 0.7 mm! Most simple F sockets komtaktieren then no longer safe. Use in this case possible to FM 60 4.5 connector with push pin.
Attention! Be sure to observe the installation: at Quick Mount plugs the braid must NOT be repulsed.In addition, all shielding sheets have to be removed over the braid.
VPE: 50

catalogue id : 99909409-01
