AB CryptoBox 652HD
Brand: ABC
Rating : Product not rated yet ! - Add review now !
| Price per unit: 57,60 € | |
|---|---|
| Price ex VAT: 48,00 € | |
| Total price: Price is including 20% VAT ! |
57,60 € |
| Check Shipping price |
Set up Watch Dog for this item
Send demand to sales department

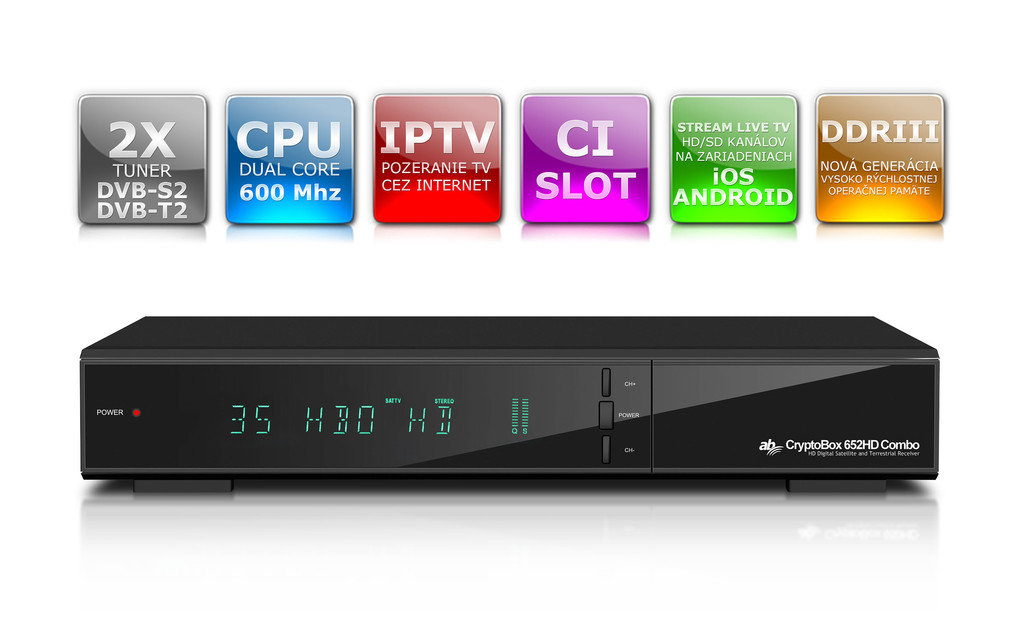

AB CryptoBox 652HD Combo
Technical specification
New Dual Core CPU 2 x 600 MHz
- New genetration High speed memory DDRIII
- IPTV – stream internet TV broadcast
- Android App. for remote control box, adding and changing timer and streaming TV broadcast to your phone or tablet
- FullHD resolution 1080p
- 1x DVB-S / DVB-S2 tuner
- 1x DVB T2 tuner
- 1x Common Interface
- 1x Card Reader
- 1x HDMI port
- 1x SCART
- 1x RS232
- 2x USB 2.0 ( 1x Front, 1x Rear panel )
- 1x LAN RJ 45
- 1x S/PDIF optical digital audio output
- Chipset: ALI3516
- Flash Memory: 8 MByte
- DDRII Memory: 128 Mbyte
- Signal Level -65 do -25 dBm
- LNB power and polarization
- Vertical: +13V/+14V,
- Horizontal: +18V/+19V
- Power max. 25W
- Frequency range 950 MHz do 2150 MHz
- Video resolution 1080i/p, 720p, 576i/p, 480i/p
- DiseqC 1.0/1.1/1.2/1.3 USALS 13V/18V, 0/22K
- VFD Display
- 7-day electronic guide
- Fast Scan
- Time Shift recording and PVR function
- PIG ( Picture in Graphic )
- FTP manager, games, weather, stock market information, networking capability and many more…
- Automatic PAL / NTSC conversion
- 6000 TV / Radio Stations
- 26 the favorite groups
- Support FAT32 and NTFS
- media player formats:
- audio MP3, OGG, FLAC
- video AVI, MKV,TS, TP, TRP, MPG, MP4
- picture JPEG, BMP, GIF
General
- Input Frequency 950 ~ 2150MHz
- Input Level -65 ~ -25dBm
- Input Impedance 75Ω
- LNB Polarisation 13V/18V/OFF, Imax = 400mA
- LNB Switching 22KHz DiSEq C 1.0/1.2
- Demodulation QPSK ,8PSK
- Reed-Solomon 204, 188, t = 8
- Roll Off Factor 0.35,0.25
- FEC 1/2, 2/3, 3/4, 5/6, 7/8, Automatic
- Symbol Rate 2.0~45 MS/s
- DVB Standard DVB-S/S2 (EN300 421)
Video
- Standard ISO/IEC 13818-2 (MPEG1,MPEG-2 MP@ML,H.264, VC1, DV, DivX, and MPEG4)
- Aspect Ratio 4:3, 16:9
- Video Full Resolution 1920 × 1080p and 1920 × 1080i and 1280 × 720p for HD video, 720 × 480p, 720 × 480i, 720 × 576i, and 720 × 576p for SD video, dual MPEG-1, MPEG-2 and MPEG-4 decode for SD resolution,MPEG4 AVC / H.264 and VC1 decode for dual SD and single HD up to 720p and 1080i and 1080p
- Video Format PAL, NTSC
- Video RAM 128 Mbytes
- HDMI output 480p&480i,576p & 576i, 720p&1080i50Hz,1080P50Hz
- Host Supplied Audio/Video I & P frame support
- Format conversion Pan & Scan, Letterbox
- Video planes 2 panes (1 graphic planes, 1 display planes)
Audio
- Standard ISO/IEC 13818-3 (Decoding: MPEG-2 layer I and II (Musiccam),MPEG4 AAC and MPEG4 AAC-HE (AAC+), Dolby Digital (AC-3) with bit rates up to 640 Kbits/s,LPCM up to 48 KHz,MP3)
- Sampling Frequency 32, 44.1, 48KHz
- Audio Output Impedance Low
- Output Mode Mono, Dual-channel, Stereo, Left, and Right
- Processor
- Chipset ALI35016
- Flash Memory 8 MByte
- DDRII Memory 128 Mbyte 800Mhz
Front Panel
- IR Receiver 38KHz
- Display VFD-segment
- USB port 1 x
- CA slot 1 x
- CI slot 1 x

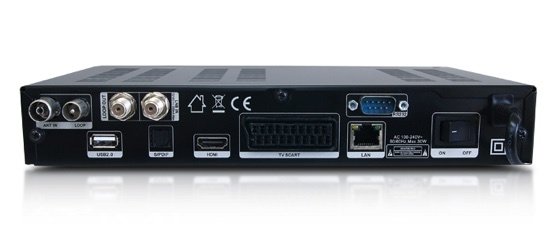

Rear Panel
- DVB LNB input and output F-type – Female
- HDMI output 1 x
- S/PDIF 1 x
- SCART 1 x
- USB2.0 1 x
- RJ45 1 x
Others
- Power Supply Smps,Input AC 100 ~ 240V, 50/60Hz; Eureapean plug
- Power Consumption Max 25W
- Ambient Operation Temperature 0 ~ 40℃
- Product size 280*233*55mm
- Gift box size 296*76*310mm
- CE, RoHs, EuP LPC,
