Schwaiger BN 8699 531
Schwaiger BN 8699 531
Brand: Schwaiger
Rating : Product not rated yet ! - Add review now !
| Price per unit: 28,99 € | |
|---|---|
| Price ex VAT: 24,16 € | |
| Total price: Price is including 20% VAT ! |
28,99 € |
| Check Shipping price |
IN STOCK , Your Quantity:
BN 8699 531

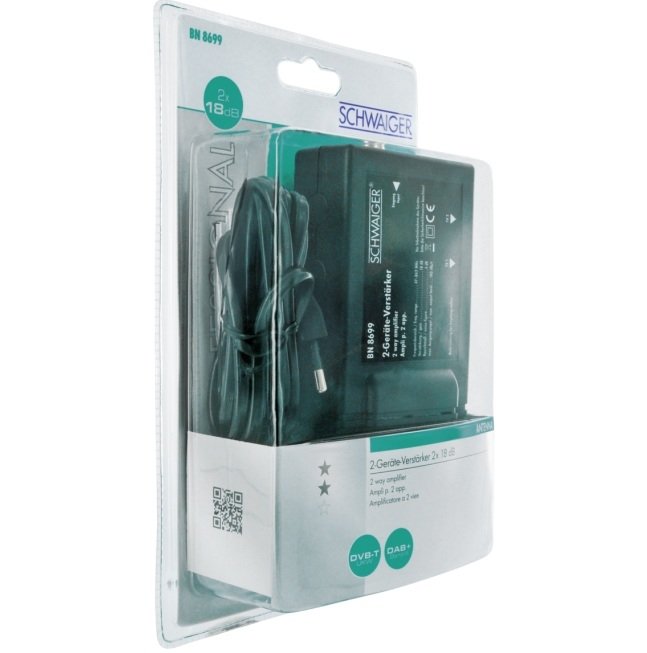

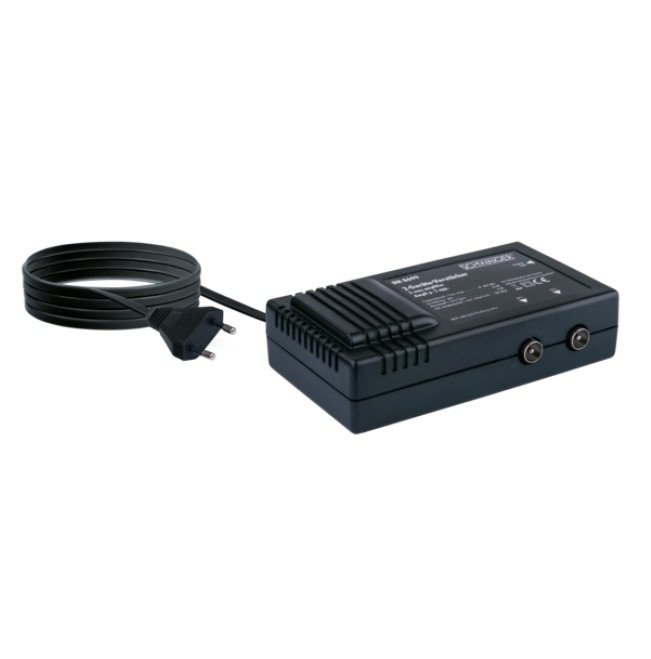

Dual Unit Amplifier (2x 18 dB)

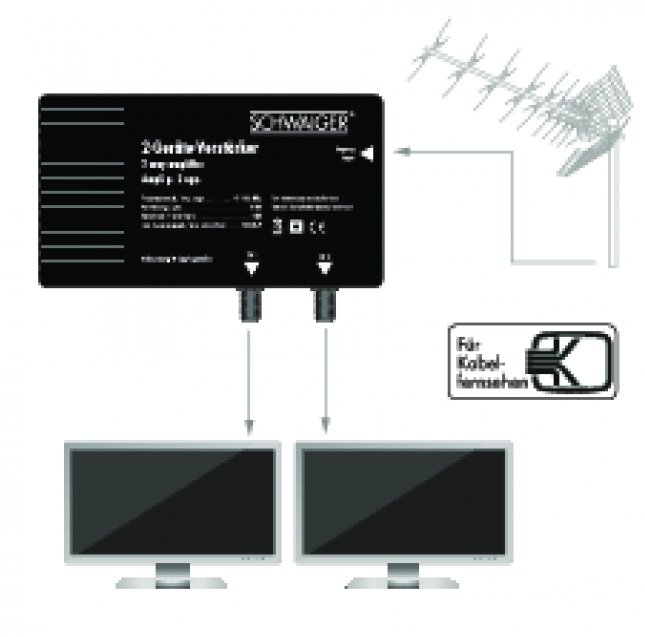

This SCHWAIGER® dual unit amplifier is suitable for connecting two TVs or radios to one antenna socket. It balances any signal loss or power loss occuring during distribution. The amplifier balances the attenuation of long cables of up to 20 m.
- for distributing one antenna or cable connection to two terminal devices (TV/receiver)
- balancing of signal loss upon simultaneous operation of 2 TV or radio devices via one antenna socket
- attenuation equalisation for long connection cables (up to 20 m)
| Power consumption | 1,9W |
| Dimensions |
(height) 37 mm (width) 127 mm (depth) 78 mm |
| Amplification (typical) | 2x 18 dB |
| Frequency range | 47 - 862 MHz |
| Output level (max.) | 100 db microvolts (IM 3 DIN 45004 B, 60dB) |
| Power supply | 230V , 50 - 60 Hz |
| Weight | 314 G |
| Connections (output) | 2 x IEC connector |
| Connections (input) | 1 x IEC connector |
| Noise figure (typical) | 4 dB |
| SKU | BN 8699 531 |
