Schwaiger BN 2315 531
Schwaiger BN 2315 531
Brand: Schwaiger
Rating : Product not rated yet ! - Add review now !
| Price per unit: 31,00 € | |
|---|---|
| Price ex VAT: 25,83 € | |
| Total price: Price is including 20% VAT ! |
31,00 € |
| Check Shipping price |
IN STOCK , Your Quantity:
BN 2315 531

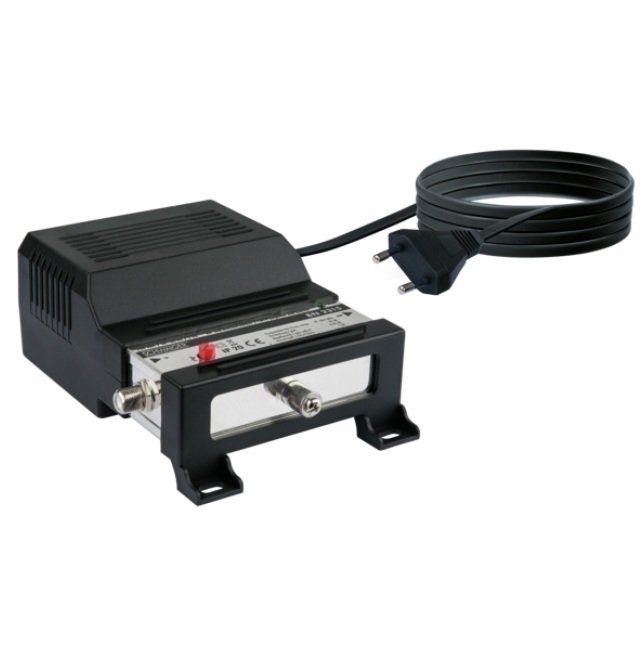

Broadband and Booster Amplifier (30 dB)

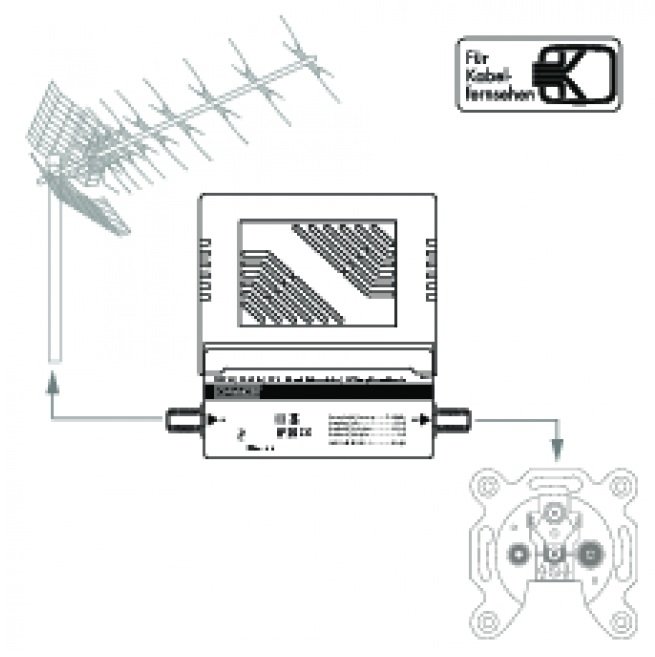

This SCHWAIGER® broadband cable and repeater amplifier comes with medium distribution systems used. It is used in a broadband network at the house transfer point or as post amplifier in CATV. adjust it when the override (picture interference) due to strong signal at the interconnection point with the level regulator as needed.
- Use as a post amplifier in CATV possible
- Built level control
TECHNICAL SPECIFICATIONS
| Power consumption | 5 VA in operation |
| Dimension |
(height) 160 mm (width) 100 mm (depth) 60 mm |
| Gain (typical) | 30 dB |
| Frequency range | 47 - 862 MHz |
| Output level (max.) | 112 dbµV (db microvolts) (IM 3 EN50083-3) |
| Power supply |
230 V |
| Connections (output) | 1 x F connector (75 Ohm) |
| Connections (input) | 1 x F connector (75 Ohm) |
| Level control | 20 dB |
| Noise figure | 5 dB |
| SKU | BN 2315 531 |
