Schwaiger DSE 652 011
Schwaiger DSE 652 011
Brand: Schwaiger
Rating : Product not rated yet ! - Add review now !
| Price per unit: 6,15 € | |
|---|---|
| Price ex VAT: 5,00 € | |
| Total price: Price is including 20% VAT ! |
6,15 € |
| Check Shipping price |
IN STOCK , Your Quantity:
DSE 652 011
3-Hole Antenna Socket Single (2 dB)

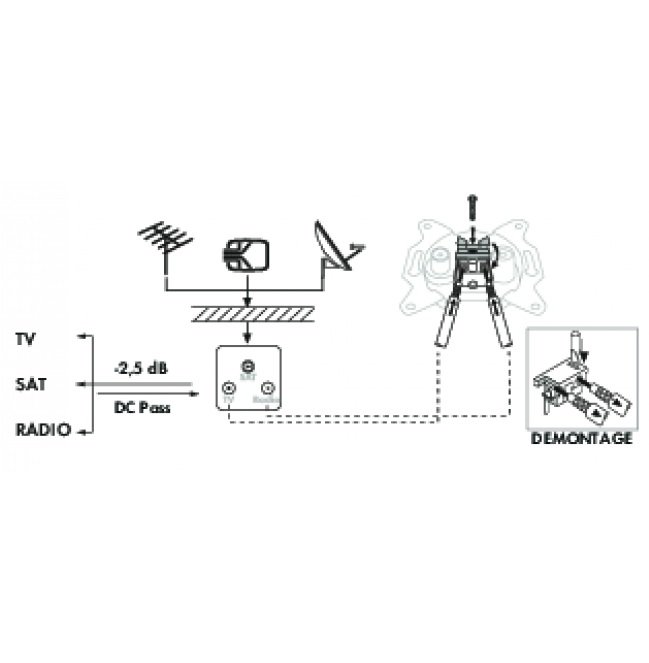

This SCHWAIGER® single socket is suitable for single, community, broadband cable and satellite antenna systems. A special feature of this socket is the two-cable and clamping technology. The two-cable technology bedeutet, dass there are two separate F connectors Which can be used unabhängig of one another. Thanks to the special clamping technology, the cable connections do not have to be screwed together.
- hinged clamp for fastening the outer conductor
- clamping technology for screwless fastening of the inner conductor (∅ 0.4 to 1.2 mm)
- crimping fastener for plaster inserts (55mm)
- two-cable technology with two F connectors
- with DC-pass at the connections SAT1 and SAT2
- standards are found in conformity declaration (Support & Service)
TECHNICAL SPECIFICATIONS
| Classification | Class A |
| Connections | 2 x F socket 1 x IEC connector |
| Isolation | > 22 dB (SAT / SAT) |
| Frequency range | 5 - 2400 MHz (SAT 1) 950 - 2400 MHz (SAT 2) 5-862 MHz (SAT 2 / TV / FM) 5-862 MHz (TV / FM) |
| Dimension |
(height) 66 mm (width) 70 mm (depth) 22 mm |
| Connection attenuation | <2.0 dB |
| Installation depth | 22 mm |
| SKU | DSE 652 011 |
